Motorcycles and Scooters

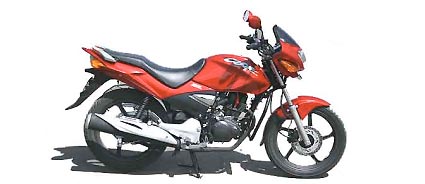

Hero Honda CBZ Extreme

Specification
Engine / Transmission
Type	Air Cooled, 4 Stroke Single Cylinder
Displacement	149.2 c.c.
Cylinder Arrangement	Single Cylinder, Vertical Engine
Maximum Power	10.6 KW (14.4 Ps) @ 8500 rpm
Bore x Stroke	57.3 x 57.8 mm
Compression Ratio	9.1: 1
Carburettor	C.V. Type
Starting	Self Start / Kick Start
Idle Speed	1400 rpm + 100
Ignition	AMI – Advanced Microprocessor Ignition
System
Gear Box	5 Speed constant Mesh
Brakes
Front Disc	Dia 240 mm Disc – Non Asbestoes
Rear Drum	Internal expanding shoe type (130) – Non Asbestoes Type
Tyre
Rim Size Front	18 x 1.85, Alloy Wheels
Rim Size Rear	18 x 2.15, Alloy Wheels
Tyre Size
Front	2.75 x 18-42 P
Tyre Size Rear	100/90 x 18 –56 P (with Tuff- up Tube)
Dimensions
Length,mm	2080 mm
Width mm	765 mm
Heigth, mm	1145 mm
Wheel base, mm	1325 mm
Ground Clearance	145 mm
Minimum turning radius	2.10 mtrs.
Weight
Kerb Weight	141 Kg (Kick) / 143 Kg (Self).
Clutch
Clutch	Multiplate wet
	Availabe in following option a) Kick Start b) Electric Start
