Three Wheelers

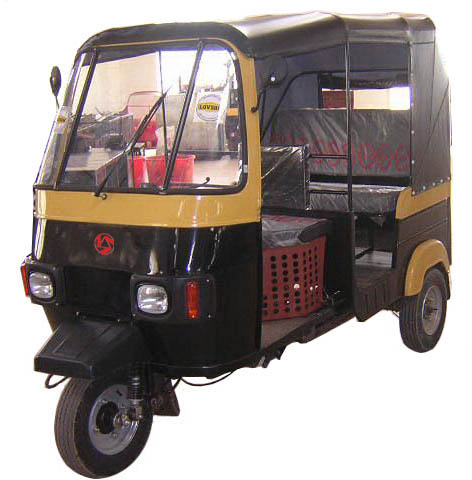

Passanger Auto 3 Seater




Download pdf

  Request a quote Passanger Auto 3 Seater
  Lovson 3-Seater Passenger

Specification
(Following option is available)
Overall Dimensions (mm) 1+3 -1+6
Overall Width 1120-1270
Overall Length 2800-2800
Overall Height 1885-1885
Wheel Track 1100-1100
Wheel base 2000-2000
Min. Ground Clearance 130-130
Weight (kg)
Max. GVW 855-855
Curb Weight 435-435
Seating capacity (including driver) 4 -7
* (The above model is available in Petrol, Diesel, CNG and LPG version.)
PETROL 280
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 74 mm / 64 mm
Displacements 275 cc
Compression Ratio 8.1
Maximum Power 9 H.P. @4400 RPM
Maximum Torque 19 NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.7 Ltr.
Air Cleaner Dry Type
Engine Weight 30.5 kg.
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
PETROL 340
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 82mm /64mm
Displacements 338cc
Compression Ratio 8.1
Maximum Power 11 H.P. @4400 RPM
Maximum Torque 23.7NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.5 Ltr.
Air Cleaner Dry Type
Engine Weight 30 kg
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
DIESEL- 360
Type Single Cylinder, 4 stroke,
Diesel Engine
Bore / Stroke 86mm / 68mm
Displacements 395cc
Compression Ratio 18.1
Maximum Power 7.5 HP. @ 3600 RPM
Maximum Torque 17 Nm @ 2200 RPM
Oil Filter Spin On
Oil Quantity 1.3 Ltr.
Air Cleaner Dry Type
Engine Weight 45 kg
Cooling System Air Cooled
Fuel Consumption 36 + /-2 km/ltr.
TRANSMISSION
Type Constant Mesh,
Mechanical Selective
No. of Gears 4 Forward + 1 Reverse
Gear Ratio 1st 5:1
2nd 2.93:1
3rd 1.84:1
4th 1.12:1
Reverse 5.94:1
Primary 1.142:1
Final 4.125:1
CLUTCH
Type Multi Plate Wet Type
Front Axle Bolted Axel on Leading Link
Rear Axle Fully Floatin Axel Shaft
Steering Handle Bar
Suspension Front : Trailing Link with
Hydraulic Shock Absorber
Rear: 2 Nos. Semi Elliptical Leaf
Spring with Hydraulic Shock Absorber
BRAKES
Type Antidive, all Three Wheels- Hydraulic
Shock Adjusting Brakes with TMC
Front Drum Brakes
Rear Drum Brakes
Parking Brake Mechanical on Real Wheel
CHASSIS
Long Member Rectangular Closed Section
Cross Member Round Tube
TYRES
Size 4.50 x 10 8 PR
ELEC. SYSTEM
System Voltage 12 v
Battery 12 v - 52 Ah Multi Plate Lead
Acid Motorized, Single Glade
Alternator (Max Output) 13.5 v 35 A @ 3600 RPM
Wiper Motorised Single Blade
FUEL TANK

Capacity

7 Liters


Request a quote
lovson - 6 seater (Petrol)
Specifications
Engine petrol 280
Type Single Cylinder, 4 Stroke, Petrol Engine, OHC
Bore/stroke, mm 74 mm / 64 mm
Number of cylinders One
Displacement 275 cc
Compression Ratio 8:01
Air cleaner Dry Type
Oil filter Spin on
Fuel filter Paper element type
Capacity of cooling system Forced Air cooled
Oil sump capacity 1.7 Litre
Weight of engine 30.5 kgs.
PETROL 340
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 82mm /64mm
Displacements 338cc
Compression Ratio 8.1
Maximum Power 11 H.P. @4400 RPM
Maximum Torque 23.7NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.5 Ltr.
Air Cleaner Dry Type
Engine Weight 30 kg
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
DIESEL- 360
Type Single Cylinder, 4 stroke,
Diesel Engine
Bore / Stroke 86mm / 68mm
Displacements 395cc
Compression Ratio 18.1
Maximum Power 7.5 HP. @ 3600 RPM
Maximum Torque 17 Nm @ 2200 RPM
Oil Filter Spin On
Oil Quantity 1.3 Ltr.
Air Cleaner Dry Type
Engine Weight 45 kg
Cooling System Air Cooled
Fuel Consumption 36 + /-2 km/ltr.
Clutch
Type Multi-Plate Wet Type
Transmission
Type Constant Mesh, Mechanical Selective
No. Of gears 4 forward + 1 reverse
Gear ratios 1. 5:1
  2. 2.93:1
  3. 1.84:1
  4. 1.12: 1
  Reverse 5.94:1
Front axle Bolted Axel on Leading links
Rear axle Fully Floating Axel shaft
Ratio 1.142:1 (Primary)
  4.125:1 (Final)
Steering Handle bar
Chassis
Long member size, mm Rectangular Closed Section
Number of cross members Round Tube
Suspension
Front Trailing Link Type with Hydraulic Shock Absorber
Rear 2 Nos. Semi Elliptical Leaf Spring with Hydraulic Shock Absorber.
Brakes
Type Antidive, all Three Wheels-Hydraulic Shock Adjusting Brakes with TMC.
Front Drum brake
Rear Drum brake
Parking Mechanical on Rear Wheel
Wheels & Tyres 4.50 x 10 -8pr cross
Electrical System
System voltage 12 V
Battery 12 V-52 Ah, Multi plate Lead Acid Motorized, Single Glade.
Alternator (max. output) 13.5 V35 A @ 3600 RPM
Wiper Motorized, Single Blade
Fuel Tank
Capacity 7 Litres
Fuel Consumption 22 + /- 2 km/ltr.
Overall Dimensions
Wheel Base 2000 mm
Overall width 1120 mm
Overall length 2800 mm
Overall height 1885 mm
Wheel Track 1100 mm
Min. Ground Clearance 130 mm
Weight
Max GVW 855 Kgs
Curb Weight 435 Kgs
Seating capacity (including driver) 4
* (The above model is available in Petrol, Diesel, CNG and LPG version.)
· In our constant endeavour to improve the product, the specifications are subject to change without any prior notice.
Request a quote
LOVSON - 6 SEATER (DIESEL)
Specifications
Engine (DIESEL 340)
Type Four –stroke, Air-cooled, Diesel Engine
Bore/stroke, mm 86mm/68mm
Number of cylinders One
Displacement 395 cc
Compression ratio 18:01
Air cleaner Dry Type
Oil filter Spine on
Fuel filter Paper element type
Capacity of cooling system Air cooled
Oil sump capacity 1.3 Litre
Weight of engine 45 kgs.
Clutch
Type Multi-plate wet type
Transmission
Type Constant Mesh, Mechanical Selective
No. Of gears 4 forward + 1 reverse
Gear ratios
  1. 5:1
  • 2.93:1
  • 1.84:1
  • 1.12: 1
Reverse 5.94:1
Front axle Bolted Axel on Leading links
Rear axle Fully Floating Axel shaft
Ratio 1.142:1(Primary)
4.125:1(Final)
Steering Handle bar
Chassis
Long member size, mm Rectangular Closed Section
Number of cross members 5 nos
Suspension
Front Trailing Link Type with Hydraulic Shock Absorber
Rear 2 Nos.Semi Elliptical Leaf Spring with Hydraulic Shock Absorber.
Brakes
Type Antidive, all Three Wheels-Hydraulic Shock Adjusting Brakes with TMC.
Front Drum brake
Rear Drum brake
Parking Mechanical on Rear Wheel
Wheels & Tyres 4.50 x 10 -8 PR
Electrical System
System voltage 12 V
Battery 12 V-52 Ah, Multi plate Lead Acid Motorized, Single Glade.
Alternator (max. output) 13.5V 35 A @ 3600 RPM
Wiper Motorized, Single Blade
Fuel Tank
Capacity 7 Litres
Fuel Consumption 36 + /- 2 km/ltr.
Overall Dimensions
Wheel Base 2000 mm
Overall width 1270 mm
Overall length 2800 mm
Overall height 1885 mm
Wheel Track 1100 mm
Min. Ground Clearance 130 mm
Weight
Max GVW 855 Kgs
Max. Permissible FAW 500 Kgs
Max. Permissible RAW 1000 Kgs
Curb Weight 435 Kgs
Seating capacity (including driver) 1
Cargo Area (L x W x H) 1584 mm x 1270 mm x 1270 mm
PETROL 280
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 74 mm / 64 mm
Displacements 275 cc
Compression Ratio 8.1
Maximum Power 9 H.P. @4400 RPM
Maximum Torque 19 NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.7 Ltr.
Air Cleaner Dry Type
Engine Weight 30.5 kg.
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
PETROL 340
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 82mm /64mm
Displacements 338cc
Compression Ratio 8.1
Maximum Power 11 H.P. @4400 RPM
Maximum Torque 23.7NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.5 Ltr.
Air Cleaner Dry Type
Engine Weight 30 kg
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
DIESEL- 360
Type Single Cylinder, 4 stroke,
Diesel Engine
Bore / Stroke 86mm / 68mm
Displacements 395cc
Compression Ratio 18.1
Maximum Power 7.5 HP. @ 3600 RPM
Maximum Torque 17 Nm @ 2200 RPM
Oil Filter Spin On
Oil Quantity 1.3 Ltr.
Air Cleaner Dry Type
Engine Weight 45 kg
Cooling System Air Cooled
Fuel Consumption 36 + /-2 km/ltr.
TRANSMISSION
Type Constant Mesh,
Mechanical Selective
No. of Gears 4 Forward + 1 Reverse
Gear Ratio 1st 5:1
2nd 2.93:1
3rd 1.84:1
4th 1.12:1
Reverse 5.94:1
Primary 1.142:1
Final 4.125:1
CLUTCH
Type Multi Plate Wet Type
Front Axle Bolted Axel on Leading Link
Rear Axle Fully Floatin Axel Shaft
Steering Handle Bar
Suspension Front : Trailing Link with
Hydraulic Shock Absorber
Rear: 2 Nos. Semi Elliptical Leaf
Spring with Hydraulic Shock Absorber
BRAKES
Type Antidive, all Three Wheels- Hydraulic
Shock Adjusting Brakes with TMC
Front Drum Brakes
Rear Drum Brakes
Parking Brake Mechanical on Real Wheel
CHASSIS
Long Member Rectangular Closed Section
Cross Member Round Tube
TYRES
Size 4.50 x 10 8 PR
ELEC. SYSTEM
System Voltage 12 v
Battery 12 v - 52 Ah Multi Plate Lead
Acid Motorized, Single Glade
Alternator (Max Output) 13.5 v 35 A @ 3600 RPM
Wiper Motorised Single Blade
FUEL TANK
Capacity 7 Liters

Request a quote
Lovson Soft Drink Carrier
Download pdf

Designed to perfection, this autorickshaw has been engineered for smooth journey.
Specification
(Following option is available)
Overall Dimensions (mm)
Overall Width 1309
Overall Length 2731
Overall Height 2007
Structure Details
No. of Deck 03
Carrying Capacity 40/60 Crates
No. of Compartments 12/15
Other Features
Back Plate Provided for Advertising Purpose
PETROL 280
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 74 mm / 64 mm
Displacements 275 cc
Compression Ratio 8.1
Maximum Power 9 H.P. @4400 RPM
Maximum Torque 19 NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.7 Ltr.
Air Cleaner Dry Type
Engine Weight 30.5 kg.
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
PETROL 340
Type Single Cylinder, 4 stroke,
Petrol Engine, OHC
Bore / Stroke 82mm /64mm
Displacements 338cc
Compression Ratio 8.1
Maximum Power 11 H.P. @4400 RPM
Maximum Torque 23.7NM @ 2800 RPM
Oil Filter Spin On
Oil Quantity 1.5 Ltr.
Air Cleaner Dry Type
Engine Weight 30 kg
Cooling System Forced Air Cooled
Fuel Consumption 22+/-2 km/ltr.
DIESEL- 360
Type Single Cylinder, 4 stroke,
Diesel Engine
Bore / Stroke 86mm / 68mm
Displacements 395cc
Compression Ratio 18.1
Maximum Power 7.5 HP. @ 3600 RPM
Maximum Torque 17 Nm @ 2200 RPM
Oil Filter Spin On
Oil Quantity 1.3 Ltr.
Air Cleaner Dry Type
Engine Weight 45 kg
Cooling System Air Cooled
Fuel Consumption 36 + /-2 km/ltr.
TRANSMISSION
Type Constant Mesh,
Mechanical Selective
No. of Gears 4 Forward + 1 Reverse
Gear Ratio 1st 5:1
2nd 2.93:1
3rd 1.84:1
4th 1.12:1
Reverse 5.94:1
Primary 1.142:1
Final 4.125:1
CLUTCH
Type Multi Plate Wet Type
Front Axle Bolted Axel on Leading Link
Rear Axle Fully Floatin Axel Shaft
Steering Handle Bar
Suspension Front : Trailing Link with
Hydraulic Shock Absorber
Rear: 2 Nos. Semi Elliptical Leaf
Spring with Hydraulic Shock Absorber
BRAKES
Type Antidive, all Three Wheels- Hydraulic
Shock Adjusting Brakes with TMC
Front Drum Brakes
Rear Drum Brakes
Parking Brake Mechanical on Real Wheel
CHASSIS
Long Member Rectangular Closed Section
Cross Member Round Tube
TYRES
Size 4.50 x 10 8 PR
ELEC. SYSTEM
System Voltage 12 v
Battery 12 v - 52 Ah Multi Plate Lead
Acid Motorized, Single Glade
Alternator (Max Output) 13.5 v 35 A @ 3600 RPM
Wiper Motorised Single Blade
FUEL TANK
Capacity 7 Liters








© Copyright 2008, Lovson Group, All Rights Reserved | Site best viewed in 1024 x 768 Resolution
