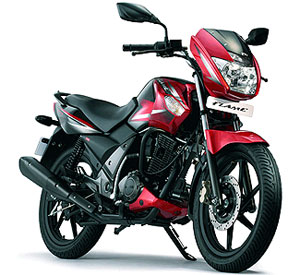

TVS Flame

SPECIFICATIONS FOR TVS FLAME
ENGINE
MODEL DESIGNATION	CC-VTI 04 STROKE
CLUTCH	Multi-Plate et type
DISPLACEMENT	124.8 cc
GEAR BOX	04 Gear Constant Mesh
BORE & STROKE	54.5 X 53.5 MM
SUSPENSION
FRONT SUSPENSION	Hydraulic, Telescopic Type, 125mm travel
REAR SUSOENSION	Hydraulic, ‘SNS’ Type, 105mm travel
TYRES
FRONT TYRE SIZE	Mag Alloy 90 x 90 x17
REAR TYRE SIZE	Mag Alloy 90 x 90 x 18
FUEL TANK
FUEL TANK CAPACITY	08
BRAKES
FRONT	Disc –230 dia
REAR	Drum-130 dia
DIMENSIONS & WEIGHT
WHEELBASE (mm)	1320
LENGTH (mm)	2030
WIDTH (mm)	760
HEIGHT (mm)	1070
WEIGHT (kgs)	121
