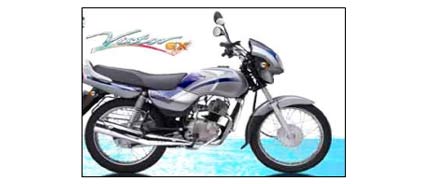

TVS Victor GX

Specifications
Engine & Transmission
Type	4-Stroke air cooled OHC
Cubic Capacity	109.03 cc
Max Power	8.1 bhp @ 7250 rpm
Max Torque	8.1 Nm @ 5500 rpm
Compression Ratio	9.3:1
Transmission	4-speed contact mesh
Suspension
Front	Telescopic oil-damped: 100mm Travel
Rear	Hydraulic with co-axial spring: 75 mm Travel
Brakes & Wheels
Tyre (Front)	2.75 x 18
Tyre (rear)	3.0 x 18
Brake (front)	130 mm
Brake (rear)	110 mm
Electricals
Head Lamp	12 V, 35 /35 W
Tail Lamp	12 V, 5 W
Turn signals	12 V, 10 W
Ignition System	Digital Ignition
Dimensions
Wheel Base	1200 mm
Kerb Weight	113 kg
Capacity
Fuel Tank	11 Litres
Fuel Reserve	3 Litres
Colours Available	Black, Blue, Maroon
