Three Wheelers

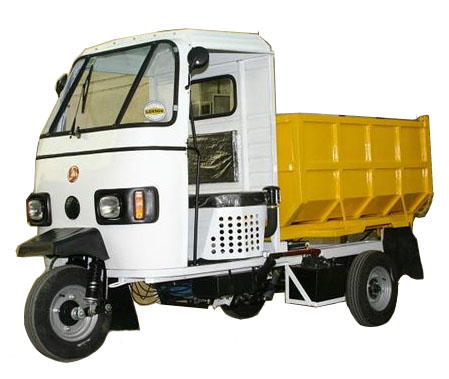

Lovson Tipper

Lovson Tipper

Specification

Overall Dimensions (mm)
Overall Width	1067
Overall Length	2947
Overall Height	1829
Bucket Dimension (LxBxH)
Open Type	1477 x 1295 x 610 mm
Close Type	1477 x 1295 x 1046 mm
Bucket Capacity
Open Type	1.2 M3
Close Type	1.6 M3
Pay Load	500 kg
Hydraulic System
Hand Operated
Cylinder
Telescopic Single Acting Cylinder
Displacement	450 mm
Working Pressure	100 bar
