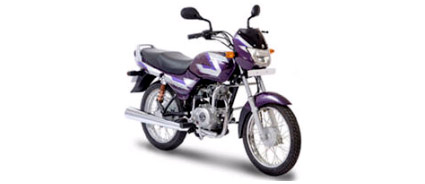

Bajaj CT-100 DLX |
|
| |
|
|
| |
|
|
| |
|
 |
|
|
| |
|
|
| |
| Specifications |
| Engine |
|
| Type |
4 stroke, Single Cylinder |
| Cooling Type |
Air Cooled |
| Displacement |
99.27 cc |
| Max Power |
8.2 bhp (6.03 kW) @ 7500 rpm |
| Max Torque |
8.05 Nm @ 5500 rpm |
| Ignition Type |
C.D.I |
| Carburetor |
Keihin-Fie |
| Transmission Type |
4 speed gear box |
| Electrical System |
|
| System |
12 V, AC+DC |
| Head Light |
35/35 W |
| Horn |
12 V, DC |
| Chassis |
|
| Chassis Type |
Tubular construction |
| Maximum Payload |
239 kg |
| Suspension |
|
| Front Suspension |
Telescopic |
| Rear Suspension |
Hydraulic, Double acting, Swing arm type |
| Tyres |
|
| Front Tyre Size |
2.75 - 18, 4/6 PR |
| Rear Tyre Size |
2.75-18, 6 PR |
| Brakes |
|
| Front Brakes |
Mechanical expanding shoe, Friction type |
| Rear Brakes |
Mechanical expanding shoe, Friction type |
| Fuel Tank |
|
| Fuel Tank Capacity |
9.3 litres |
| Reserve Capacity |
2.2 litres |
| Dimensions |
|
| Overall length |
1950 mm |
| Overall width |
770 mm |
| Overall height |
1065 mm |
| Wheel Base |
1225 mm |
| Kerb Weight |
109 kg |
| Colours Available |
Black, Wine Red, Purple |
| |
|
|
|
| |
|
|
| |
|
|
|
|
 |
